Tilting Box Trolley FI-034 |
|
 |
| Size |
: |
30” L X 18” W X 12” H. |
| Structure |
: |
Will Be Made From 75 X 40 Mm. M.S. ‘C’ Channel With 35x35x5 Mm. M.S. Angle, 30x 5 Mm. M.S. Flat, 1” Dia. M.S. Pipe & 16 Swg M.S. Sheet. |
| Wheels |
: |
3 Nos. 8” X 2” Size H.D.P.E. Wheels With 2 Nos. 6205 ‘Z’ Type Double Ball Bearings In Each Wheel. 1 No. Swivell Castor At Front Side & 2 Nos. Fixed Mounted Castor At Rear Side. |
| Handle |
: |
1 No. ¾” Dia. M.S. Pipe Handle For Push-Pull Purpose. |
| Paint |
: |
One Coat Of Primer & Two Coats Of Syn. Enamel Paint. |
|
Inquiry for Tilting Box Trolley FI-034
|
|
|
|
|
Double Gas Cylinder Trolley ( Oxygen & Lpg ) FI-036 |
|
 |
| Size |
: |
30” L X 18” W X 12” H. |
| Structure |
: |
Will Be Made From 75 X 40 Mm. M.S. ‘C’ Channel With 35x35x5 Mm. M.S. Angle, 30x 5 Mm. M.S. Flat, 1” Dia. M.S. Pipe & 16 Swg M.S. Sheet. |
| Wheels |
: |
3 Nos. 8” X 2” Size H.D.P.E. Wheels With 2 Nos. 6205 ‘Z’ Type Double Ball Bearings In Each Wheel. 1 No. Swivell Castor At Front Side & 2 Nos. Fixed Mounted Castor At Rear Side. |
| Handle |
: |
1 No. ¾” Dia. M.S. Pipe Handle For Push-Pull Purpose. |
| Paint |
: |
One Coat Of Primer & Two Coats Of Syn. Enamel Paint. |
|
| 200 MM. DIA. X 1500 MM. LENGTH |
230 MM. DIA. X 1300 MM. LENGTH |
260 MM. DIA. X 950 MM. LENGTH |
Inquiry for Double Gas Cylinder Trolley ( Oxygen & Lpg ) FI-036
|
|
|
|
 |
| Capacity |
: |
6 Cu. Ft. |
| Size |
: |
36” L X 24” W X 12” Ht. |
| Structure |
: |
Will Be Made From 75 X 40 Mm. M.S. ‘C’ Channel With 35x35x5 Mm. M.S. Angle, 30x 5 Mm. M.S. Flat, 1” Dia. M.S. Pipe & 16 Swg M.S. Sheet. |
| Wheels |
: |
2 Nos. 20” Dia. M.S. ‘T’ Section Wheels With Bearings. |
|
Inquiry for Wheel Baro FI-038
|
|
|
|
 |

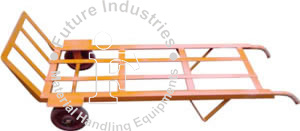

| Capacity |
: |
250 Kgs. |
| Size |
: |
54” Length X 20” Width X 12” Height Of Toe. |
| Structure |
: |
Will Be Made From Heavy-Duty M.S. Angle & M.S. Flats. 2 Nos. Support Will Be Given For Support At Handle Side & 2 Nos. M.S. Pipe Handle For Push-Pull Purpose. |
| Wheels |
: |
2 Nos. 10” X 2” Size H.D.P.E. Wheel Running On
1 No. M.S. Axle. |
|
|
Inquiry for Bales Trolley Fi-040
|
|
|
| |

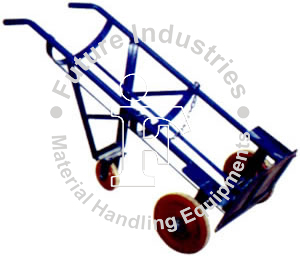

Single Ammonia Gas Cylinder Trolley ( 3 WHEELER ) FI-041 |
|
|
Ammonia Gas Cylinder : 375 MM. DIA. X 1000 LENGTH.
|
| Size |
: |
58” L X 15” W X 12” Ht. (Deep) Of Toe. |
| Capacity |
: |
To Lift & Shift Purpose Of 1 No. 275 mm. Dia. X 1300 mm. Ht.
Amonia Cylinder In It. |
| Structure |
: |
Will Be Made From ¾” Dia. M.S. Pipe, 32 x 5 , 50 x 10 mm. M.S. Flat & 10 swg. M.S. Sheet. |
| Handle |
: |
2 Nos. M.S. Pipe Pulling-Pushing Handle Will Be Provided. |
| Wheels |
: |
2 Nos. 8” X 2” Size H.D.P.E.. Wheels With Double Ball Bearings Running On 1 No. M.S. Axle & 1 no. 6” x 2” Size Swivell Castor Wheel At Rear Side. |
|
Inquiry for Single Ammonia Gas Cylinder Trolley ( 3 WHEELER ) FI-041
|
|
|
|
|
|
|
|
