4 Nos. 16” X 4” Size pneumatic scooter tyre Wheels With 2 Nos. 6205’z’ Double Ball Bearings In Each Wheel. 2 Nos. Wheels Mounted On Heavy-Duty M.S. Turn Table Device At Handle Side & 2 Nos. Wheels Mounted On Fixed Castor At Rear Side.
Handle
:
1 No. ‘T’ Shape M.S. Pipe Pulling Handle.
Paint
:
One Coat Of Primer & Two Coats Of Auto-Finish Paint.

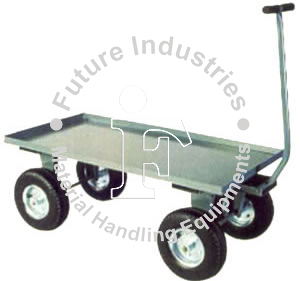

Inquiry for Platform Truck with Scooter Wheels FI-030
Platform Truck Naylon Wheels FI-031
Capacity
:
250 Kgs.
Size
:
36” Length X 24” Width.
Structure
:
Base Structure Will Made From 40x40x5 mm. M.S. Angle & Supported By Same Size M.S. Angle Between Frame. Plateform Is Covered By 16 Swg M.S. Sheet.
Wheels
:
4 Nos. 8” X 2” Size White Virgin Nylon Wheels Mounted On 2 Nos. Swivel & 2 Nos. Fixed Castor. Each Wheel Contains 2 Nos. Double Ball Bearings.
Paint
:
One Coat Of Primer & Two Coats Of Auto-Finish Paint.
Inquiry for Platform Truck Naylon Wheels FI-031
Platform Trolley With Reling
Capacity
:
500 Kgs.
Size
:
60” Length X 36” Width X 30” Height.
Structure
:
Base Structure Will Made From 40x40x5 mm. M.S. Angle & Supported By Same Size M.S. Angle Between Frame. Plateform Is Covered By 16 Swg M.S. Sheet. Two Widthwise Elevated Side Is Made From M.S. Angle & M.S. Flat / M.S. PIPE. Two Lengthwise Elevated Side Is Protected By Means Of Two Nos. Openable Type M.S. Flat // M.S. Chain.
Wheels
:
4 Nos. 8” X 2” Size White Virgin Nylon Wheels Mounted On 2 Nos. Swivel & 2 Nos. Fixed Castor. Each Wheel Contains 2 Nos. Double Ball Bearings.
Paint
:
One Coat Of Primer & Two Coats Of Auto-Finish Paint.
